EVO 5 R
Front: 185 €
Rear: 335 €
EVO 5 R BERD
Front: 210 €
Rear: 360€
EVO 5 R
EVO 5 R Berd

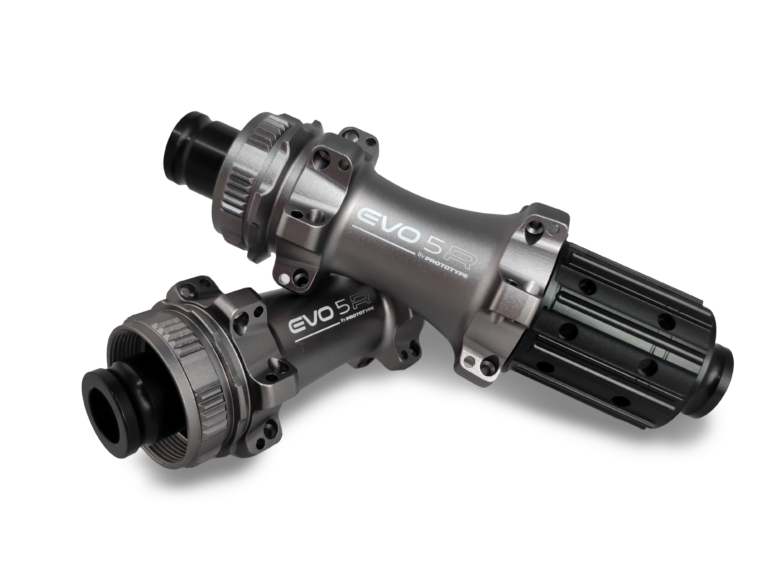

The 2nd generation of the EVO Road hub is here, now with a ratchet system.
20% lighter than the previous generation (EVO R), while using a 36-tooth system that provides 12x more stability of the gears and smoother acceleration versus the standard pawl system.
Designed to last, the EVO 5 R also features better sealing for its inner components and a more user-friendly assembly for hassle-free maintenance.
The EVO 5 R is also available in a BERD fiber spokes-compatible version.
SPECIFICATIONS
Hub EVO 5 R – Front
- Model: EVO 5 R
- Material: aluminium
- Number of holes: 28
- Colours: titanium grey
- Axle system: 12 x 100mm
- Spoke type: straight pull
- Max spoke tension: 1200N
- Bearings: high precision sealed bearings (ceramic bearings option available)
- Brake system: center lock
- Clamping: thru-axle
- Weight: 90gr
Hub EVO 5 R – Rear
- Model: EVO 5 R
- Material: aluminium
- Number of holes: 28
- Colours: titanium grey
- Axle system: 12 x 142mm
- Spoke type: straight pull
- Max spoke tension: 1200N
- Points of Engagement: 36 (10º)
- Bearings: high precision sealed bearings (ceramic bearings option available)
- Freewheel System Options: Shimano HG, Micro Spline Road, XDR or N3W
- Brake system: center lock
- Clamping: thru-axle
- Weight: 200gr (XD)
