Ultimate
With just 1070gr, the ULTIMATE is our lightest MTB wheelset ever.
Built with no compromises, thanks to the perfect combination between our newest generation of EVO 5 hubs and the use of BERD fiber spokes.
Dominate the trails like never, with faster speeds and increased confort due to its 30mm internal width and revolutionary fiber spokes.
MSRP: 2.000 €
Hello, fiber spokes!
The bleeding edge combination of carbon wheels, a ratchet hub and fiber spokes.
More rigid, lighter, accurate and easier to maintain.

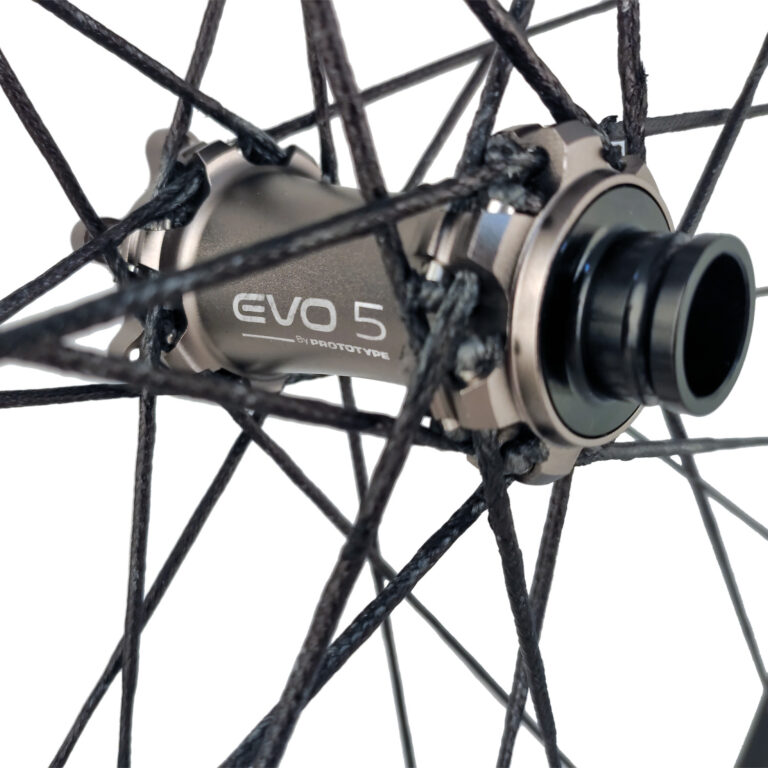

The 5th generation of the EVO hub is here with our first MTB ratchet hub.
8% lighter than the previous generation EVO 4, while using a 36-tooth system that provides 12x more stability of the gears and smoother acceleration versus the standard pawl system.
Designed to last, the EVO 5 also features better sealing for its inner components and a more user-friendly assembly for hassle-free maintenance.
SPECIFICATIONS
Rim
- Material: full carbon
- Width (inner/outer): 30/36mm
- Profile: 19,5mm
- Size: 29″ (622x30c)
- Rim shape: hookless asymmetric
Hub
- Model: EVO 5 BERD
- Bearings: high performance sealed bearings
- Braking System: IS (6-bolt)
- Clamping: thru-axle
- Color: titanium grey
Tire
- Size: 29″
- Type: tubeless or tubeless ready
- Width: 2.2 to 2.6
- Max. Pressure: 60psi /4bar
Spokes and Nipples
- Model: Berd
- Type: straight pull
- Spoke material: polyethylene
- Nipple material: aluminium (w/ thread lock)
Compatibility Wheel
- Front Wheel: EVO 5 Berd 15x110m
- Optional Hub: Lefty Supermax
- Rear Wheel: EVO 5 Berd 12x148m
- Freweel body options: Shimano HG, Micro Spline or Sram XD
Optional Acessories
- Ceramic Bearings
- Wheel bag kit
- Custom color wheel stickers
- Tubeless Sealant CH3
Wheelset and weight
- Discipline: XC
- ASTM: 3 – ASTM List
- Weight limit (system): 90kg
- Wheelset weight (29″ EVO 5): 1070gr
- Include accessories: user manual, UST rim tape, aluminium valves
- Notes: The spokes are factory-dyed black. This finish may fade with regular use and exposure to the elements. DO NOT pressure wash or apply chemicals to the spokes. The weight indicated is a reference value.
