ROAD Wheel World Tour 5

ROAD Wheel World Tour 5

150 150 PROTOTYPE

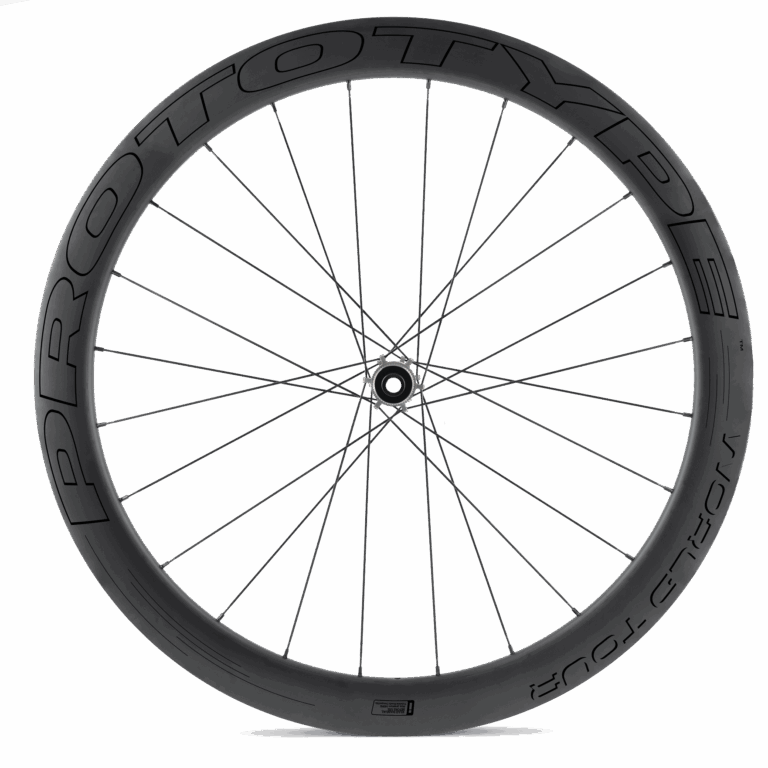

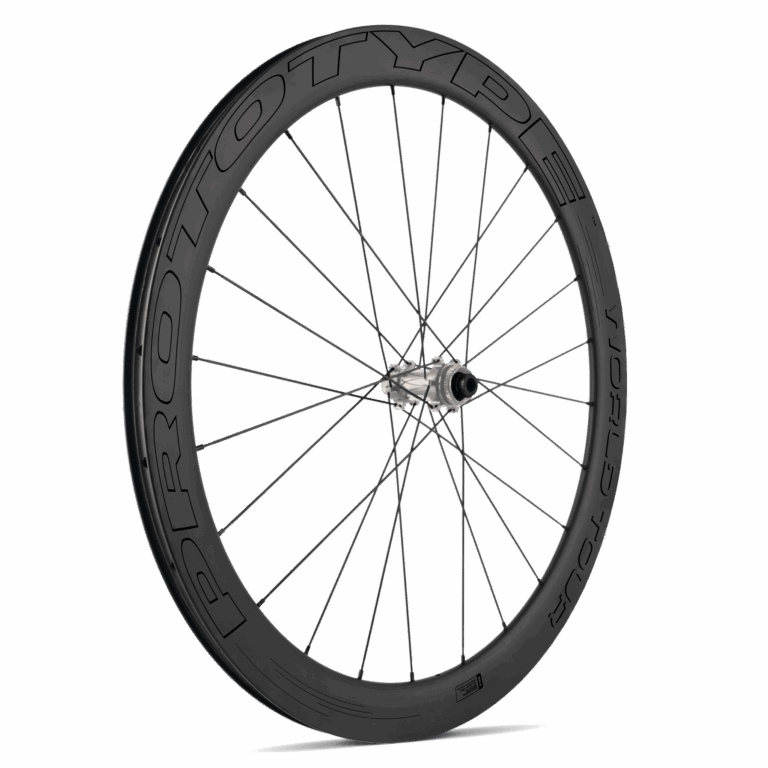

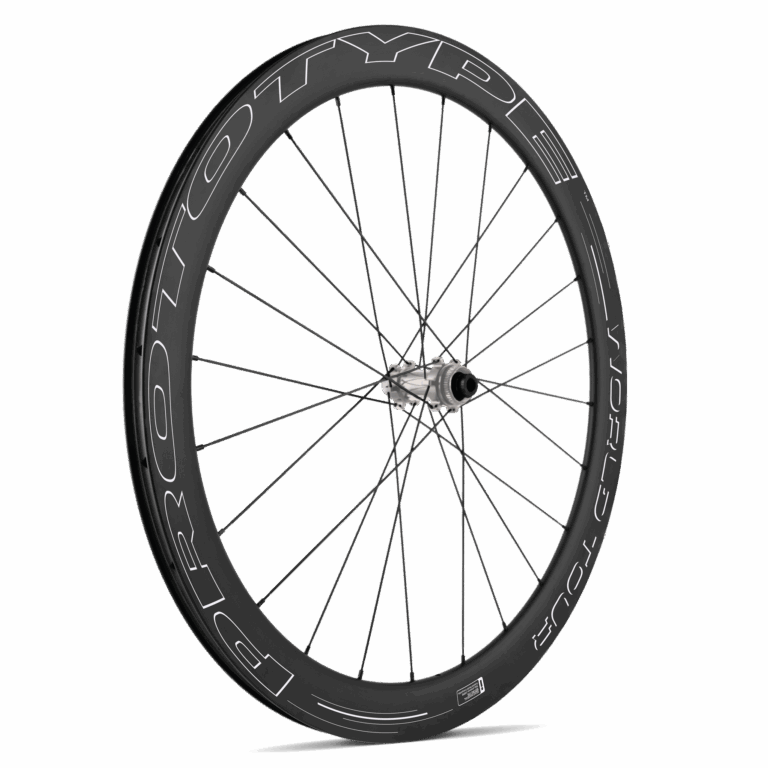

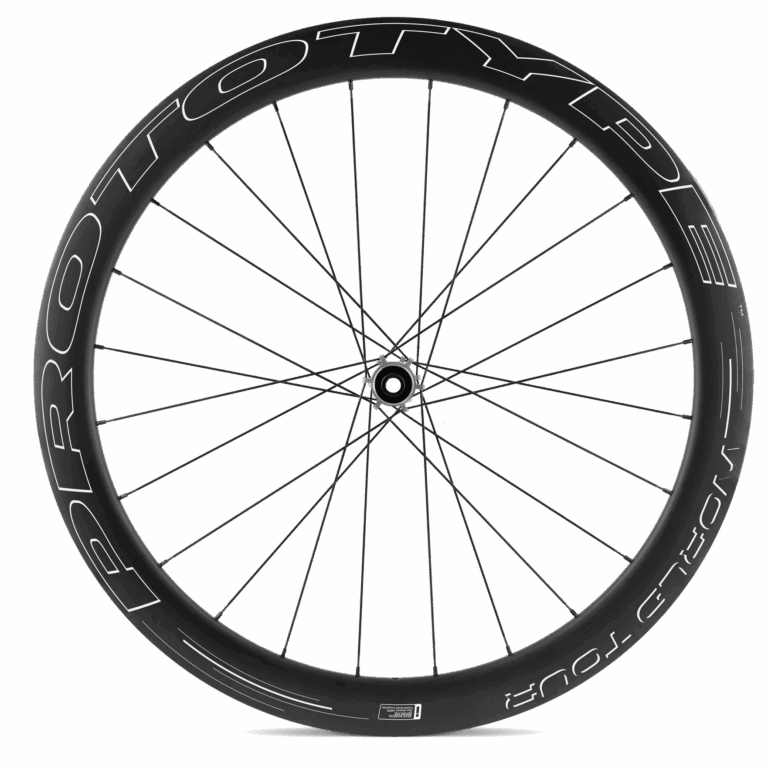

World Tour 5

The wheelset of choice for fast riding or racing.

The new WORLD TOUR have been designed to provide an outstanding performance in stiffness and rolling resistance.

We attained our goal due to the new hub EVO 5R and carbon rim layer up.

Available colors
black-white

MSRP: 1.580 €

SPECIFICATIONS

Rim

  • Material: full carbon UD
  • Width (inner/ outer) : 19/26mm
  • Rim depth: 50mm
  • Type: clincher tubeless ready
  • Brake surface: no
  • Rim shape: symmetric

Hub

  • Model: EVO 5R
  • Material: Aluminium light-force
  • Bearings: high performance sealed bearings
  • Braking System: center-lock
  • Clamping: thru axle

Tire

  • Size: 700c
  • Type: clincher
  • Width: 19 to 28
  • Max. Pressure: 140psi / 9bar

Spokes and Nipples

  • Model: aero 2.0
  • Type: straight pull
  • Spoke material: sandvik
  • Nipple material: aluminium

Compatibility Wheel

  • Front wheel
  • Caps: 12x100mm (Hub EVO 5R 100)
  • Rear wheel
  • Caps: 12x142mm (Hub EVO 5R 142)

Options

  • Freewheel Body Options: Shimano 10-12s / Sram XDR / Campagnolo
  • Ceramic bearings: yes
  • Color: custom sticker kit

Wheelset and weight

  • Discipline: Road
  • ASTM: 1 – ASTM List
  • Weight limit (system): 110kg
  • Weight: 1515gr (EVO 5R)

  • Include accessories: user manual, rim tape, aluminium valves.
  • Note: The weight indicated is a reference value.
